Product Description

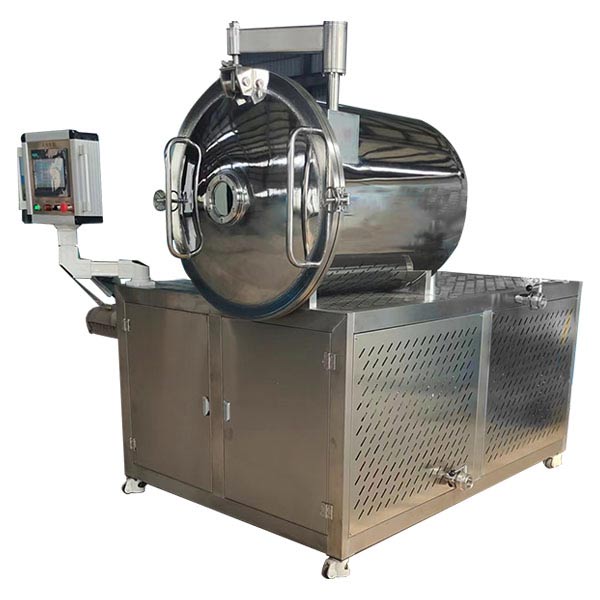

Freeze Dryer, also known as a lyophilizer, is a device used to remove water from a substance by the process of sublimation. This means that the water in the substance transitions directly from a solid (ice) to a gas (water vapor), bypassing the liquid phase. 2.5m² vacuum freeze dryer has 6 pcs trays for freezing drying .

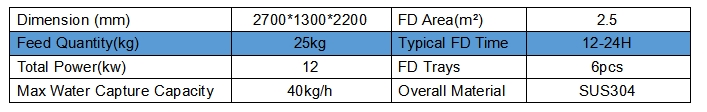

 Basic Parameters

Working Principle

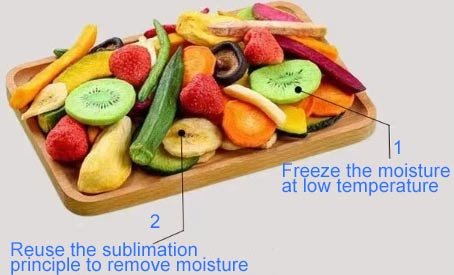

The basic principle of freeze-drying is based on the three state changes of water. Water can exist in solid, liquid, and gas states, which can both be converted and coexist with each other. When water is at the triple point (temperature of 0.01 ℃, water vapor pressure of 610.5Pa), water, ice, and water vapor can coexist and be in equilibrium with each other. Under high vacuum conditions, utilizing the principle of sublimation, the moisture in pre frozen materials is directly removed as water vapor through ice sublimation without melting, thus achieving the purpose of freeze-drying.

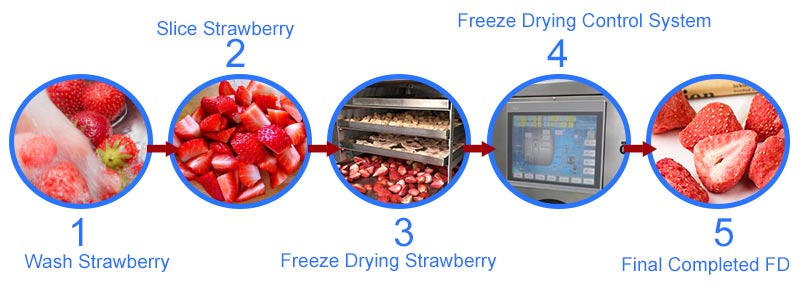

Vacuum Freeze Drying Process

1.Pre freezing stage. Place the material to be dried in a low-temperature environment, allowing the moisture inside to quickly condense into ice crystals. The key to this stage is to ensure uniform freezing of the material and avoid the formation of large ice crystals that can damage the structure of the material.

2.Vacuum stage. Start the vacuum system to reduce the pressure inside the drying chamber to an extremely low level. This low-pressure environment helps to lower the sublimation temperature of ice crystals and promote the subsequent sublimation process.

3.Sublimation stage. Under vacuum and appropriate heating conditions, ice crystals in the material directly sublime into water vapor, which is collected and discharged from the system through a condenser. During this process, the material temperature is kept below freezing point, avoiding material quality loss and nutrient damage caused by the presence of liquid water.

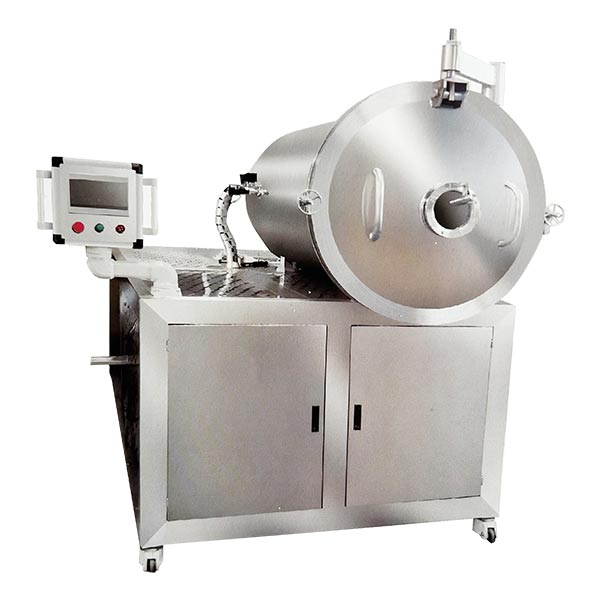

Small Freeze-Drying Machines Characteristics

1.Compact and portable. The small freeze-drying machine has a small volume, light weight, and is easy to carry and use.

2.Easy to operate.Most modern small freeze-drying machines use touch screens or rotary control panels, and users only need to set parameters such as temperature, time, and vacuum degree to start the equipment. Some high-end models are also equipped with intelligent control systems that can automatically adjust working parameters to meet the drying needs of different materials.

3.Efficient and energy-saving.By optimizing the heat conduction structure, adopting efficient vacuum pumps and refrigeration systems, small freeze-drying machines effectively reduce energy consumption and operating costs.
